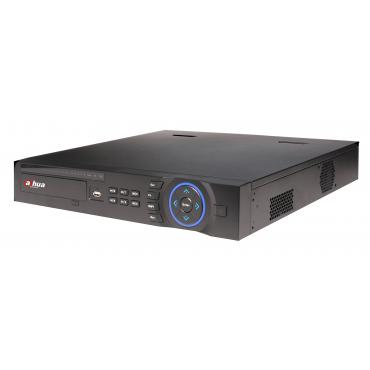

Dahua Model:DVR3232L
Call for Price
> Up to 24/32 cameras with 1080p realtime preview
> H.264 dual-stream video compression
> Full channel CIF realtime recording
> HDMI / VGA / TV / Spot simultaneous video output
> All channel simultaneous realtime playback, GRID interface & smart search
> 3D intelligent positioning with Dahua PTZ dome camera
> Support 2 SATA HDDs up to 8TB, 2 USB2.0
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Description
| Model | DH-DVR3224L | DH-DVR3232L | |
| System | |||
| Main Processor | Embedded processor | ||
| Operating System | Embedded LINUX | ||
| Video | |||
| Input | 24 channel, BNC | 32 channel, BNC | |
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | ||
| Audio | |||
| Input | 4 channel, BNC | ||
| Output | 1 channel, BNC | ||
| Two-way Talk | 1 channel Input 1 channel Output(Reuse the audio output channel), BNC |
||
| Display | |||
| Interface | 1 HDMI, 1 VGA, 1 TV, 1 Spot, BNC | ||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | ||
| Display Split | 1/4/8/9/16/25 | 1/4/8/9/16/25/36 | |
| Privacy Masking | 4 rectangular zones (each camera) | ||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||
| Recording | |||
| Video/Audio Compression | H.264 / G.711 | ||
| Resolution | CIF(352×288/352×240) / QCIF(176×144/176×120) | ||
| Record Rate | Main Stream: | CIF(1~25/30fps) | |
| Extra Stream | QCIF(1~25/30fps) CIF(1~6/7fps) | ||
| Bit Rate | 48~1024Kb/s | ||
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | ||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||
| Video Detection & Alarm | |||
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips | ||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||
| Alarm Input | 16 channel | ||
| Relay Output | 3 channel | ||
| Playback & Backup | |||
| Sync Playback | 1/4/9/16 | 1/4/9/16 | |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | ||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||
| Backup Mode | USB Device / Network / Internal SATA burner | ||
| Network | |||
| Ethernet | RJ-45 port (10/100M) | ||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server | ||
| Max. User Access | 20 users | ||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||
| Storage | |||
| Internal HDD | 2 SATA ports (2HDDs or 1HDDs+1CD/DVD-RW), up to 8TB | ||
| Auxiliary Interface | |||
| USB Interface | 2 ports (1 Rear), USB2.0 | ||
| RS232 | 1 port, For PC communication & Keyboard | ||
| RS485 | 1 port, For PTZ control | ||
| General | |||
| Power Supply | DC12V/ 5A | ||
| Power Consumption | 25W(without HDD) | ||
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | ||
| Dimension(W×D×H) | 1.5U, 325mm×240mm×45mm | ||
| Weight | 5.0KG(without HDD) | ||
