ZKteco TF1700 Bangladesh

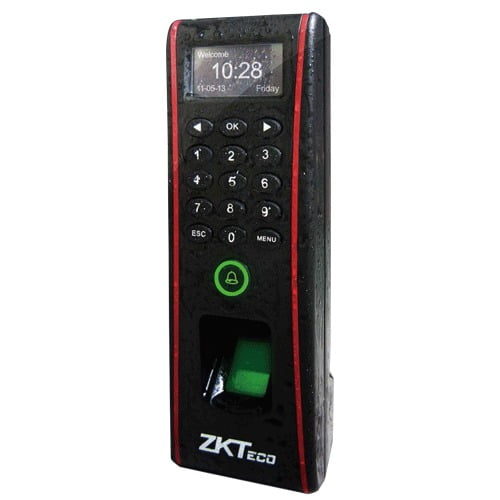

ZKTeco TF1700 IP Based Fingerprint Access Control and Time Attendance

Call for Price

ZKTeco TF1700 Bangladesh

Rugged Structure for Outdoor Installation and Extra Durability

IP65 rated waterproof and dustproof structure

Slim and Elegant Design

One of the world’s smallest fingerprint terminals.Sleek and slim design for

narrow spaces.

Fast and Accurate Fingerprint Algorithm

1 touch a-second user recognition.

Store 3,000 fingerprint templates, 30,000 cards and 500,000 transactions.

Full Access Control Features

Anti-passback.

Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell

Easy Installation and Connectivity

Wiegand input & output.

Network interface by TCP/IP or RS485

Easy Operation and Management

Work without computer. OLED, buzzer, 3×5 keypads. Built-in keypad and RF card reader for multi-modal authentication(Fingerprint/PIN/Card)

Description

Technical Specifications

Fingerprint Sensor

Infrared detection fingerprint sensor

Algorithm Version

ZK Finger VX10.0

Communication

TCP/IP, RS485, USB Host

Fingerprint Capacity

3,000 Fingerprints(8,000 Optional)

Card Capacity

10,000 Cards

Log Capacity

50,000 Transactions

RF Card

EM(standard)/Mifare(optional)

Authentication

Finger/PIN/Card

Wiegand Signal

Wiegand input&output

Ingress Protection Rate

IP65

Display

128 x 64 OLED

Keypad

3 x 5 keypads & doorbell

Sound and Interface

Buzzer and multi-color LED

Operating Voltage

12VDC 3A

Operating Temperature

-10 °C~50 °C (14°F ~ 122°F)

Dimension

62.5mm×185mm×41.5mm (W×H×D)
