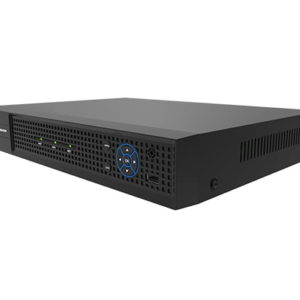

Jovision JVS-XD2508-HL10V 8CH H.265+ Digital Video Recorder
Call for Price
Jovision JVS-XD2508-HL10V
Support H.265+ encoding, ultra-low bit rates, compatible with H.264 surroundings;
Support VGA, HDMI HD output simultaneously;
Support various mobile monitoring (IOS, android);
Support UTC, control signal& video stream transmit through one single coaxial;
Support AHD/TVI/CVI/CVBS/IP five signals;
Support Multi – language；
Support IVP;
Description
Jovision JVS-XD2508-HL10V
| JVS-XD2508-HL10V | ||
|
Video and Audio |
Analog Camera Input | 8 Channel, BNC |
| HDCVI Camera | 4MP@25/30fps,1080P@25/30fps, 720P@25/30fps | |
| AHD Camera | 5MP@20/12.5fps, 4MP@25/30fps, 1080P@25/30, 720P@25/30fps | |
| TVI Camera | 5MP@20/12.5fps, 4MP@25/30/15fps, 1080P@25/30, 720P@25/30fps | |
| CVBS Camera | PAL/NTSC | |
| IP Camera Input | Up to 4M | |
| Video port
configuration |
Full HD: 8CH | |
| hybrid : 4CH+4CH | ||
| Full network: 8CH | ||
| Audio In/Out | 4/1, RCA | |
| Two-way Talk | 1CH RCA | |
|
Recording |
Compression | H.265+ |
| Resolution | 5M, 4M, 1080N, 720P, WD1 | |
|
Record Rate |
Mainstream:5M(2~15fps),4M(2~15fps),1080P(2~15fps),1080N/720P/960H/
D1(2~15fps） |
|
| Sub stream: D1/CIF(2~12fps) | ||
| Record Mode | Manual, Schedule (General, Continuous), MD (Motion Detection, Video Loss, | |
| Audio Compression | G.711U | |
|
Display |
Interface | 1 HDMI ,1 VGA |
| Resolution | 1280*1024，1024*768，1280*800，1440*900，1920*1080 | |
| OSD | Device ID, Time, Record Setting, Alarm setup, Audio, Camera title | |
|
Network |
Interface | 1 RJ-45 Port (100M) |
| Network Function | TCP/IP, DHCP, DNS, DDNS, HTTPS,HTTP, RTSP,NTP | |
| Smart Phone | iPhone ,Android | |
| Interoperability | ONVIF 2.4, CGI | |
|
Playback and Backup |
Playback | 4CH |
| Search Mode | Time /Date, MD , IVP, Auto, Scheduled | |
| Playback Function | Day view, Hour view, Back Step, Rewind, Pause, Play, Fast Forward, Slow,
Step, Snap, Sound on/off, Zoom, Backup to U-Disk |
|
| Backup Mode | USB | |
| Hard Disk Driver | Interface Type | 1 SATA Interface |
| Capacity | Up to 6 TB capacity for each disk | |
|
General |
Power Supply | 12 VDC |
| Consumption | ≤ 8 W | |
| Working Temperature | 0℃~ +55℃ | |
| Working Humidity | 10% to 90% | |
| Dimensions | 345*275*75mm，(13.6*10.8*3.0 inch) | |
| Weight | ≤ 1.4 kg (3.1 lb.) | |
