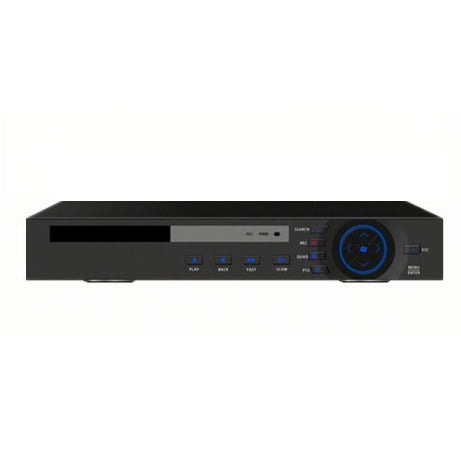

Sony DVR 16 Channel
Call for Price
Support HDCVI/IP Video input
H.264 dual-stream video compression
All channel 720P realtime or 1080P non-realtime recording
4/8/16 channel synchronous realtime playback,
HDMI/VGA simultaneous video output
Support 2 SATA HDDs up to 8TB, 2 USB2.0
3D intelligent positioning with Dahua PTZ dome camera
ONVIF Version 2.4 conformance
Multiple network monitoring: Web viewer, CMS&Smart Phone(MMS/IMMS)
Description
| Model No. |
CVR4204
|
CVR4208
|
CVR4216
|
| Main Processor | Industrial Embedded Microprocessor | ||
| Operating Series | Embedded LINUX System | ||
| Operation Interface | Graphical User Interface(GUI) | ||
| Language | Simplified Chinese, traditional Chinese, English, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkey, Poland, Romania, Hungary, Finnish, Hebrew, Brazil, Persian, Arabian, Czech republic, Bulgaria, Slovakia, the Netherlands, Greece, Indonesia, Switzerland, Vietnamese, Thai,Korean,Yugoslavia |
||
| Compression Standard | H.264(High Profile) | ||
| Encode Capability | 4*720P@30fps 4*1080P@15fps |
8*720P@30fps 8*1080P@15fps |
16*720P@30fps 16*1080P@15fps |
| Decode Capability (play back) |
4*720P@30fps 4*1080P@15fps |
8*720P@30fps 8*1080P@15fps |
16*720P@30fps 16*1080P@15fps |
| Multi-mode Input | CVI:4*720P/4*1080P IPC: MAX 2*1080P |
CVI:8*720P/8*1080P IPC: MAX 4*1080P |
CVI:16*720P/16*1080P IPC: MAX 4*1080P |
| Output | 1*VGA, 1*HDMI | ||
| Frame Rate | PAL:1~25F/S; NTSC:1~30F/S | ||
| Code Stream | 1536Kbps~4096Kbps, 720P/1080P Default 2M Stream, MAX 4M Stream | ||
| Image Resolution | 1080P/720P/960H/D1/HD1/2CIF/CIF/QCIF; Support dual-stream | ||
| Display Split | 1ch /4ch | 1ch /4ch /8ch /9ch | 1ch /4ch /8ch /9ch /16ch |
| Input | 1*RCA Interface | ||
| Output | 1*RCA Interface | ||
| Compression Standard | G.711A, G.711U, PCM | ||
| Two-way | Support Mic in, Mic out | ||
| Bit Rate | 8KHz, 16Bit | ||
| Code Rate | 64Kbps | ||
| HDD Quantity | Support 2* SATA Interface | ||
| HDD Management | Each HDD MAX 4T | ||
| Record Mode | AUTO Record, Manual Record, Motion Detection Record, Alarm Record | ||
| Record Circulation | Support circulation overwrite recording | ||
| Playback Mode | Suooprt multiple slow playback, multiple fast playback, manual single frame playback, inverted playback, etc. | ||
| Multiple Channel Playback | Support 1ch, 2ch, 3ch, 4ch, 8ch, 16ch synch-playback | ||
| Privacy Masking | Support Max. 4 zones in one screen (each zone no size limitation) | ||
| Motion Detection | Zone Setting: 396 (PAL 22×18 NTSC 22×15); Detection Sensitivity Setting: Multiple Level of Sensitivity Linkage Record, External Alarm, Popup Screen Tip |
||
| Organise/Withdraw Defence | 6 periods of time per day | ||
| Log Query | Max.1024 log on shown, Support searching log information based on the time and type | ||
| Backup Mode | Support HDD, CD writer and USB device storage and backup | ||
| USB | 2*USB 2.0 interface (one in front panel, one in back panel or 2 in back panel) | ||
| Network | 1*RJ45 interface, 100M Ethernet interface | ||
| RS485 | 1* RS485 Interface | ||
| Alarm Prerecord | Max. 30 seconds | ||
| Power Supply | DC 12V | ||
| Power Consumption | ≤15W(with Adapter, without HDD) | ||
| Working Temperature | -10°C~+55°C | ||
| Working Humidity | 10%~90% | ||
| Barometric Pressure | 86kpa~106kpa | ||
| Dimension | 370mmX115mmX310mm | ||
| Weight | 1.9Kg~2.35kg(without HDD) | ||
| Installation | Desk Type | ||
