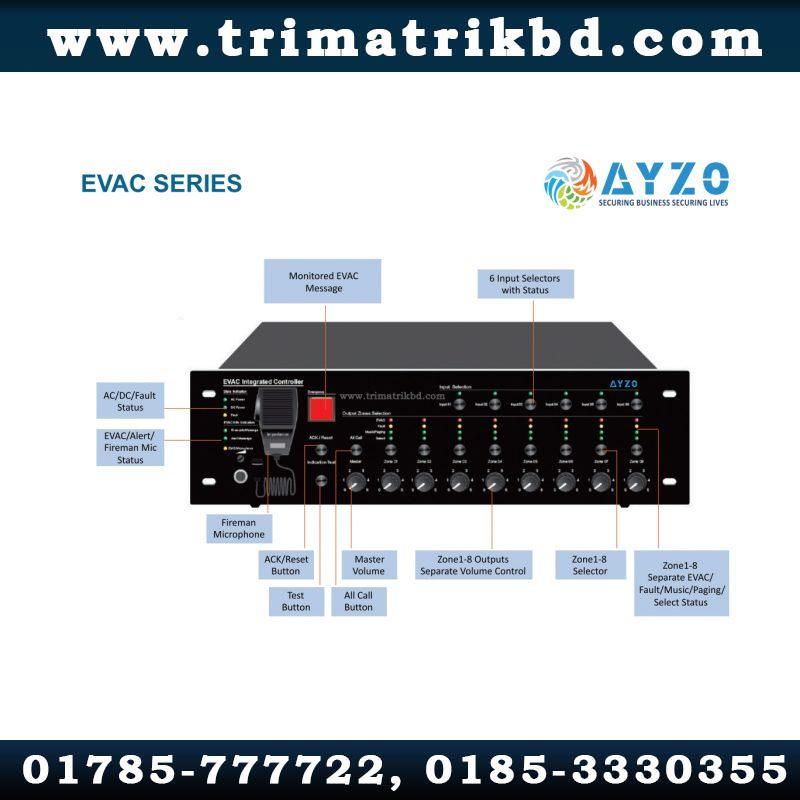

Ayzo A-EVAC-6Z-500W Voice Evacuation System

Call for Price

  • 6 Zone EVAC Controller
  • Built-in 500W class-D amplifier
  • Built-in EVAC and alert voice message by SD card
  • Integration of EVAC controller, paging system, PA system & BGM system together
  • Zone capacity of 120 zones by cascaded 19 routers
Categories: , Brand:


Ayzo A-EVAC-6Z-500W Bangladesh | Voice Evacuation System

Model NumberA-EVAC-6Z-500W
Rated Power Output500W
Fireman Microphone5Mv, 600Ω
Line 1-2 Inputs385mV, 10kΩbalanced Combo
Line 3-6 Inputs350mV, 10kΩ, RCA
Frequency Response80Hz~20kHz
THD<1% at RMS,1KHz
S/N Ratio>70dB
Speaker Output100V AB 8 zone speaker outputs
REC Output200mV
Control Input & Output8 programmable control inputs: Max 3.3V (voltage mode) or 0V closed contact 8 programmable control outputs: 0V closed contact; Control output for fault & EVAC: 0V closed contact; Reset control input: 0V closed contact
Voice MessageMP3 or WMA format, two separate players of SD card with protection cover, programmable voice message up to 255, 10 years valid
Event RecordHEX format, Hard Flash memory, events up to 1000 records, 10 years valid
Operation EnvironmentOperation Temp: +5℃ ~ +40℃; Store Temp: -20℃ ~ +70℃; Operation Humidity: <95%
Power Consumption600W
Power SupplyAC230V or 115V & DC24V battery inputs, 50-60HZ
AC Fuse250V/6.3A, slow type and restorable fuse
Dimension484(W)×132(H)×449(D) mm
