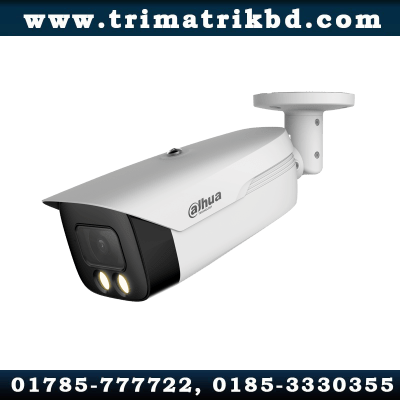

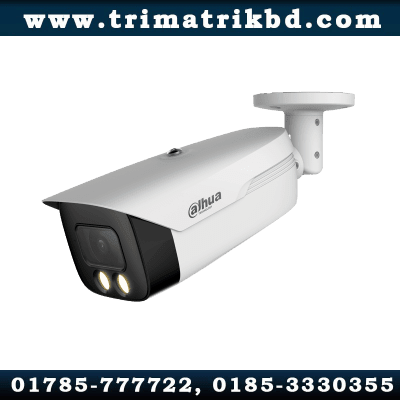

Dahua HAC-HFW1509MH-A-LED 5MP Full-color HDCVI Bullet Camera

৳ 5,000.00

5MP Full-color HDCVI Bullet Camera

> Max 25 fps@5MP (16:9 video output)
> 120 dB true WDR, 3D NR
> 24/7 color imaging
> 50 m illumination distance
> CVI/CVBS/AHD/TVI switchable
> Built-in mic
> 3.6 mm fixed lens (6mm mm optional)
> IP67, 12 V DC

Description

Dahua HAC-HFW1509MH-A-LED 5MP Full-color HDCVI Bullet Camera

Camera

Image Sensor

5MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL:1/3 s–1/100,000 s

NTSC:1/4 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.001 Lux/F1.0, 0 Lux warm light on

Illumination Distance

50 m (164 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

2

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed lens

Mount Type

M12

Focal Length

3.6 mm; 6 mm

Max. Aperture

F1.0

Field of View

3.6 mm: H: 88; V: 46°; D: 104°
6mm: H: 59; V: 32°; D: 67°

Iris Type

Fixed iris

Close Focus Distance

3.6 mm: 2.3 m (7.5 ft)
6mm:4.5m (14.8 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6 mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.2 ft)

6 mm

120 m

(393.7 ft)

48 m

(157.5 ft)

24 m

(78.7 ft)

12 m

(39.4 ft)

Video Dahua HAC-HFW1509MH-A-LED 5MP Full-color HDCVI Bullet Camera

Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

BLC

BLC/HLC/WDR/HLC-Pro

WDR

120 dB

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart Light

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 areas, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1 CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in mic

Power

Power Supply

12 V ±30% DC

Power Consumption

Max 6.4 W (12 V DC, warm light on)

Environment

Operating Temperature

–40 °C to 60 °C (–40 °F to 140 °F); < 95% (non-condensation)

Storage Temperature

–40 °C to 60 °C (–40 °F to 140 °F); < 95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal front cover plastic main body plastic bracket

Camera Dimensions

304 mm × 108.4 mm × 90.8 mm (11.97″ × 4.27″ × 3.57″)

Net Weight

0.82 kg (1.8 lb)

Gross Weight

1.25kg (2.8 lb)

Dahua HAC-HFW1509MH-A-LED 5MP Full-color HDCVI Bullet Camera

FAQ :

What is the price of the Dahua HAC-HFW1509MH-A-LED in Bangladesh?

Dahua HAC-HFW1509MH-A-LED price is 5,000 Taka. You can order online and get home delivery very fast or you can visit our Corporate Office. If you want home delivery please order on www.trimatrikbd.com or inbox us @ fb.me/trimatrikbd

Dahua HAC-HFW1509MH-A-LED, is it waterproof?

Yes, this Dahua HAC-HFW1509MH-A-LED CCTV Camera is waterproof.

Dahua HAC-HFW1509MH-A-LED camera is night vision?

Yes, the camera is night vision, you can see clearly on Dark night Low Light
