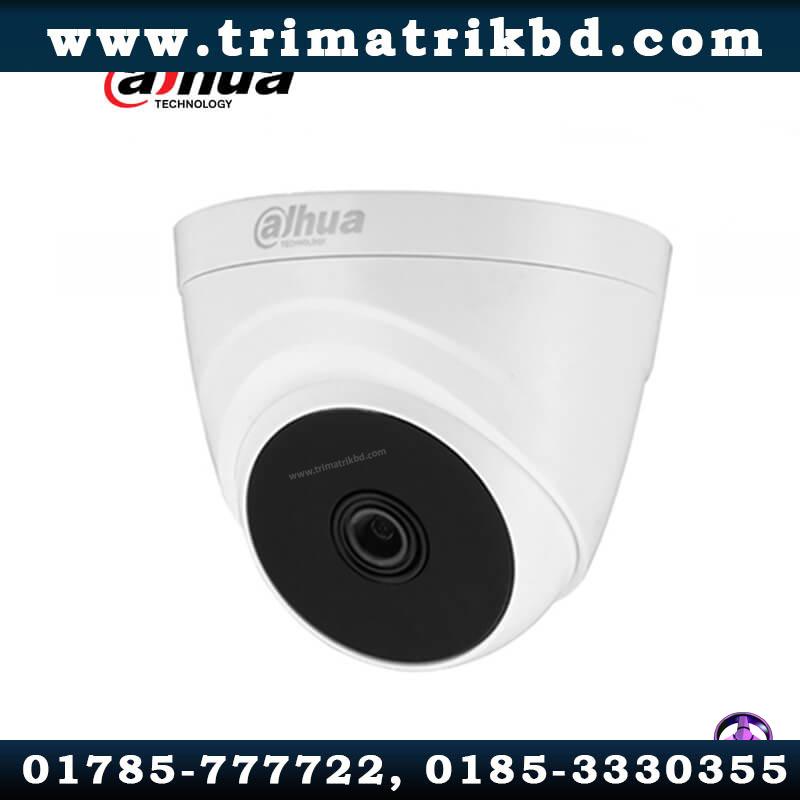

Dahua HAC-T1A21P 2MP HDCVI IR Eyeball Camera
Dahua HAC-T1A21P 2MP HDCVI IR Eyeball Camera

Dahua HAC-T1A21P 2MP HDCVI IR Eyeball Camera

৳ 2,200.00

  • Max. 30fps@1080P
  • HD and SD output switchable
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • Max. IR length 20m, Smart IR
  • DC12V

Description

Dahua HAC-T1P21P 2MP HDCVI IR Eyeball CCTV Camera

The Dahua HAC-T1P21P has high-quality HD and SD output. It features a high-resolution camera with 2MP resolution and a fixed 3.6mm lens. The camera can cover a distance of 20 meters and has a S/N ratio of 65dB. The camera weighs only 0.09kg and comes with a 1-year warranty.

Dahua HAC-T1A21P 2MP HDCVI IR Eyeball Camera
Dahua HAC-T1A21P Price in Bangladesh

Dahua HAC-T1A21P Bangladesh

Camera
Image Sensor 1/2.7″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s
Minimum Illumination 0.04Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F1.85
Angle of View H: 93° (103°, 54.7°)
Focus Control N/A
Close Focus Distance 800mm (500mm, 2000mm)

31.50” (19.69″, 78.74”)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°

Tilt: 0° ~ 78°

Rotation: 0° ~ 360°
Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI

Definition

 Distance
Detect 25px/m

(8px/ft)

 2.8mm: 37m(121ft)

3.6mm: 51m(167ft)

6mm: 80m(262ft)
Observe 63px/m

(19px/ft)

 2.8mm: 15m(49ft)

3.6mm: 20m(66ft)

6mm: 32m(105ft)
Recognize 125px/m

(38px/ft)

 2.8mm: 8m(26ft)

3.6mm: 10m(33ft)

6mm: 16m(51ft)
Identify 250ppm

(76px/ft)

 2.8mm: 4m(14ft)

3.6mm: 5m(17ft)

6mm: 8m(26ft)
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±30%
Power Consumption Max. 2.3W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ 60°C (-40°F ~ 140°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ 60°C (-40°F ~ 140°F) / Less than 95% RH
Ingress Protection & Vandal Resistance NA
Construction
Casing Plastic
Dimensions 85mm×85mm×69mm(3.35″×3.35″×2.72″)
Net Weight 0.09kg (0.20lb)
Gross Weight 0.13kg (0.27lb)

Dahua

Dahua Technology is a leading solution provider in the global video surveillance industry. With around 13,000 employees all over the world, Dahua solutions, products, and services are used in over 180 countries and regions. Dahua has 35 subsidiaries globally covering Asia, the Americas, Europe, Middle East, Oceania, Africa, etc. With its surveillance solutions, Dahua delivers unparalleled quality, reliability and stability. Dahua HAC-T1A21 Bangladesh

Dahua IP Camera is committed to providing its highest quality solutions and products with the latest technologies to enable end users to perform their business successfully. In 2001, Dahua became the first company in China to launch an 8-channel real-time embedded digital video recorder. Since then, the company has continued to invest in building strong R&D capabilities for new technology and innovation.

Dahua HAC-T1A21P Price in Bangladesh

Price: ৳ 2,200
Brand: Dahua
Item: Dahua CC Camera
Contact No: 01789-636363
Hotline: 01785-777722
Warranty: One Year
