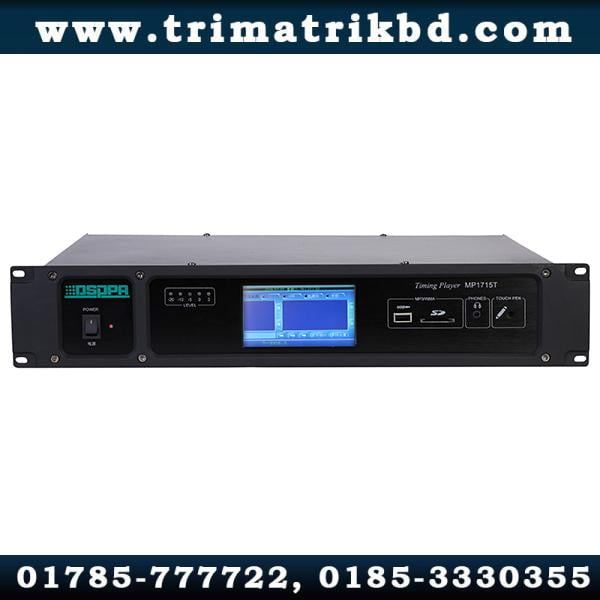

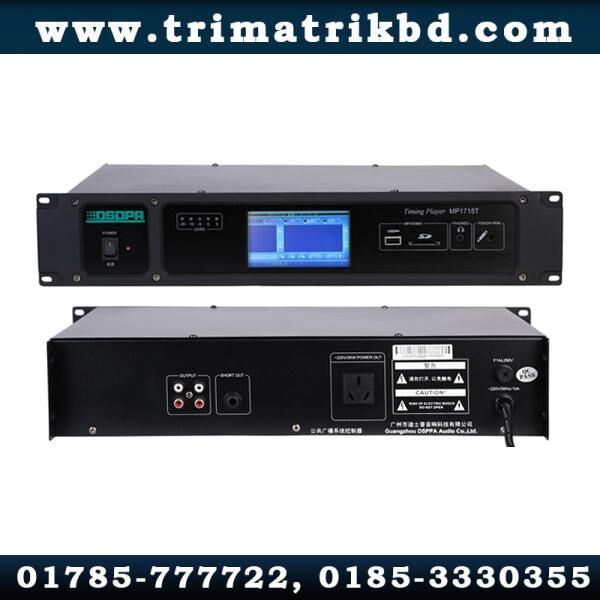

DSPPA MP1715T PA System Program Timing Player

Call for Price

● 4.3” TFT colorful liquid crystal touch screen;
● Editing of 8 timing programs;
● 100 timing points in a daily program;
● A route of AC 220V 2000W power output socket with the function of timing on-off;
● The function of turn on the power of the equipment within 1-60 seconds (time settable);
● Output of LED level indication


DSPPA MP1715T PA System Program Timing Player in Bangladesh

MP1715T is a kind of timing player of the MP3 program based on ARM32 bits microprocessor system platform and integrating the playing of program from U-disc and SD card and the timing control of the playing of the program from SD card.
In the equipment, 4.3” liquid crystal touch screen is used for display with the captions in Chinese and English for option. All the functions and the condition of the equipment are absolutely clear. It is easy to operate by touch. Any operation of the equipment is visualized and clear, and the human computer interaction manifests the humanization and intelligence. It supports most of the marketable USB memory equipments and SD cards.

DSPPA MP1715T in Bangladesh, TRIMATRIK

DSPPA MP1715T in Bangladesh

Indicator Parameter
Display screen 4.3”
MP3 input sensitivity 230-280mV
Line output 1000mV (±50mV)
Earphone monitoring level 1000mV (±50mV)
Maximum output noise voltage ≤0.5mV
Timing power socket 1(220V/50HZ proper grid voltage)
Capacity of socket 220V, 2000W
Times of frequency 8 weekly programs, 1 daily program
System of time 24-hour system
Protection OneF1AAC protective tube
Working power AC 220-240V/50-60Hz
Dimension of outer packing (mm) (L×W×H)530×440×195
Dimension of equipment (mm) (L×W×H)484×365×88
Gross weight 9kg
Net weight 7.2kg

DSPPA MP1715T in Bangladesh
DSPPA MP1715T in Bangladesh
