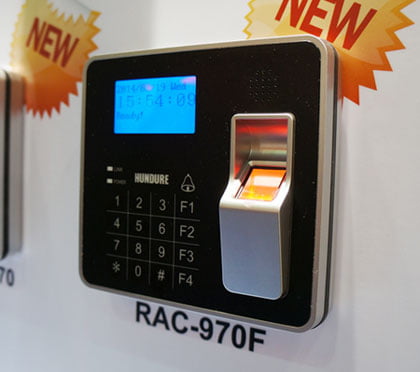

Hundure RAC-970 Access Control & Time Attendance

Call for Price

  • Bell key design. Suit for various location.
  • Casing tamper proof detection and door tampers alarm.
  • Support swipe card and swipe card with pin codes enter modes.
  • The memory of the standard model is 18,000 cardholders (max) and 18,000 events.
  • Another model with 170,000 events storage is available for optional purchase.
  • Unique ID or Block read format supported. (RAC-970PM)
  • Slim, stylish design with waterproof sensitive touch keypad with blue backlight.
  • Built-in RS-485 & TCP / IP communication interface to PC.
  • Blacklist and Duress card/code setting. When door opened in the emergency, the controller will send signal to control center at the same time for tracing and rescue.
  • Programmable disarm code and able set maximum attempts to trigger re-swipe card alarm. The controller time-out function will avoid intrusion in and has self security.
  • Provide 32 working shifts and 32 siren output. LCD will display current shift and activate alarm. Provide 100 holiday schedules per year.
  • Able to connect external slave reader, And support anti-passback to every single door.
  • Provide 128 time zones and time schedules, 8 time conditional unlock door schedules. (per week)
  • Display name on the LCD screen after swiped card. Function keys of access control and shifts which are convenient to personnel to generate time attendance reports.
  • On-board lithium battery ensures data storage can reach up to 1 year upon power outage.



Category: Brand:

Description

  • Bell key design. Suit for various location.
  • Casing tamper proof detection and door tampers alarm.
  • Support swipe card and swipe card with pin codes enter modes.
  • The memory of the standard model is 18,000 cardholders (max) and 18,000 events.
  • Another model with 170,000 events storage is available for optional purchase.
  • Unique ID or Block read format supported. (RAC-970PM)
  • Slim, stylish design with waterproof sensitive touch keypad with blue backlight.
  • Built-in RS-485 & TCP / IP communication interface to PC.
  • Blacklist and Duress card/code setting. When door opened in the emergency, the controller will send signal to control center at the same time for tracing and rescue.
  • Programmable disarm code and able set maximum attempts to trigger re-swipe card alarm. The controller time-out function will avoid intrusion in and has self security.
  • Provide 32 working shifts and 32 siren output. LCD will display current shift and activate alarm. Provide 100 holiday schedules per year.
  • Able to connect external slave reader, And support anti-passback to every single door.
  • Provide 128 time zones and time schedules, 8 time conditional unlock door schedules. (per week)
  • Display name on the LCD screen after swiped card. Function keys of access control and shifts which are convenient to personnel to generate time attendance reports.
  • On-board lithium battery ensures data storage can reach up to 1 year upon power outage.

Model No.RAC-970PERAC-970PM
Read Format

EM (125 KHz )

Mifare-1 (13.56MHz )
Read Range8-10 (max)3-5 (max )
Slave ReaderT2 or Wiegand (1 Set )
Input Ports3 Sensors (Door Sensor x 1、Exit Button x 1、Case Sensor x 1)
Output Port
(Built-in)
Relay x 1 (Door Lock or Bell )
Output Port (External)O.C. Output x 2( Door Lock / Alarm or Siren , external ACU-30 )
Cardholders18,000 (max)
Events18,000
LED IndicatorPower / Comm.
LCD Display128 x 64 Dot. Graphic Display with backlight
Keypad17 Key (F1-F4, 0-9, *, #, Bell) (Sensitive Touch Keypad)
Real Time ClockYes
Beep ToneBuzzer
ID or IP SettingCommand setting by keypad
Water-proofIP 65
Power InputDC 12V / 1A
Current Consumption500mA. (max. excluding slave reader)
Comm. InterfaceRS-485 / TCP/IP
Comm. BaudrateRS-485:9,600/19,200 bps-N-8-1, TCP/IP:10/100 Mbps
Operating Temp.0° C ~ 55° C / 32° F ~ 131° F
Relative Humidity20% ~ 80%(Non-condensing)
Dimension130mm(L) x 100mm(W) x 27mm(H)
