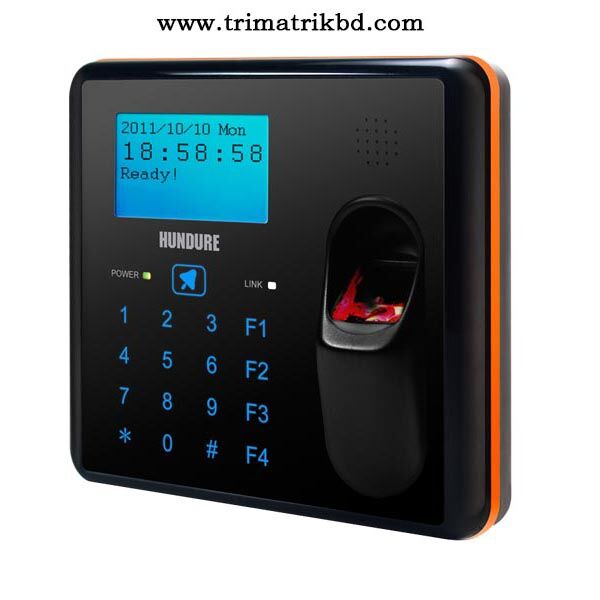

Hundure RAC-960 Fingerprint Time Attendance & Access Controller

Hundure RAC960PEF Fingerprint Time Attendance & Access Controller

৳ 25,000.00

  • Bell key function design. Suit for various location.
  • Casing tamper proof detection and door tamper alarm.
  • Slim, stylish design, sensitive touch keypad with blue backlight.
  • Dual card / fingerprint contrast function, improve system security.
  • High security, using encryption with random code to saving finger characteristic.
  • Large LCD display time, date, weekday and company name. And show cardholder Chinese / English name or card number after verification.
  • The standard model can access 950 users with 2 fingerprint templates per each user (total 1,900 fingerprint templates ). The storage event record is up to 18,000 events.
  • The advanced model can access 4,750 users with 2 fingerprint templates per each user (total 9,500 fingerprint templates). Another model with 170,000 events storage is available for optional purchase.
  • Quick and accurate fingerprint verification, supports 1:1 authentication & 1:N identification. And audible voice prompts guiding users during verification process.
  • Provide 32 working shifts and 32 siren schedules. Able display current shift or active alarm. Provide 100 holiday schedules per year.
  • Provide 128 time zones and time schedules, 8 time conditional unlock door schedules (per week).
  • Duress card/code setting. When door opened in the emergency, controller will send signal to control center at the same time for tracing and rescue.
  • Programmable disarm code.
  • Unique ID or Block read format supported and programmable key value. (RAC-960PMF)
  • RTC ensures to provide correct date and time. Watchdog function secures system free from halting.
  • Built-in RS-485 & TCP/IP communication interface to PC.
  • On-board lithium battery ensures data storage can reach up to 1 year upon power outage.
  • Conforms to ISO 14443A standard; supporting Mifare card. (RAC-960PMF)

Description

Hundure RAC960PEF Bangladesh

Model No. RAC-960PEF RAC-960PMF
Read Format EM (125KHz) Mifare-1 (13.56MHz )
Read Range 8-10 cm (max ) 3-5 cm (max )
Slave Reader

T2 or Wiegand (1 Set )

Input Port 3 Sensors (Door Sensor x 1、Exit Button x 1、Case Sensor x 1);
Output Port
(Built-in)
Relay x 1 (Door Lock or Bell )
Output Port (External) O.C. Output x 2 ( Door Lock / Alarm or Siren , external ACU-30 )
Cardholders 18,000 (max)
Events 18,000
Fingerprint Capacity 950 user capacity. ( 2 fingerprint templates per person)
Identification Mode 1:1 / 1:N
Identification Time 1:1 <= 1 sec. 1:1,000 <= 1 sec.
FAR <=0.001%
FRR <=0.01%
Fingerprint Sensor Optical CMOS Sensor
LED Indicator Power / Comm.
LCD Display 128 x 64 Dot. Graphic Display with backlight
Keypad 17 Key (F1-F4, 0-9, *, #, Bell) (Sensitive Touch Keypad)
Real Time Clock YES
Beep Tone Buzzer & Operating steps sound
ID or IP Setting Command setting by keypad
Power Input DC 12V / 1A
Current Consumption 1A (max.)
Comm. Interface RS-485 TCP/IP
Comm. Baudrate RS-485 : 9,600 / 19,200 bps-N-8-1 。 TCP/IP : 10/100Mbps
Operating Temp. 0° C ~ 55° C / 32° F ~ 131° F
Relative Humidity 20% ~ 80%(Non-condensing)
Dimension 140mm(L) x 130mm(W) x 41mm(H)
Weight (Device) 400g

Hundure Bangladesh, HUNDURE Technology Co., Ltd. was founded in 1989. The founders of this company are experienced in the field of security engineering and are rich in professionalism. For more than a decade’s field experience, HUNDURE has become one of the trusted brand in providing physical access control systems and other solutions. Ever since the founding of this company, HUNDURE insists on providing customers with professional one stop shop service and diversified total solution products. We design and manufacture RFID systems, time & attendance recorder, access control panels, readers, biometrics and related peripherals. From standalone products to multiple level security & integration solutions, HUNDURE products are widely used in enterprises, chain stores, banks, power plants, foundry, president office or even prisons. Our commitment is to provide simple, reliable and stable quality products. We are one of the very few companies in the industry capable of providing well-designed integrated system products prevailingly adopted on a number of remarkable projects for years. HUNDURE puts time & efforts into research and development and successfully integrated customers’ unique systems using OPC server (Note 1). Our flexible design ensures the rapid integration of access control, time & attendance, elevator control, parking control, power control, visitor, patrol, catering management and graphic event monitoring, video surveillance via a common platform. With our adequate experience in a wide variety of industries and our extensive software and hardware development resources, HUNDURE is quite confident that our powerful product line will benefit our customers with increased sales and wider distribution channels.
