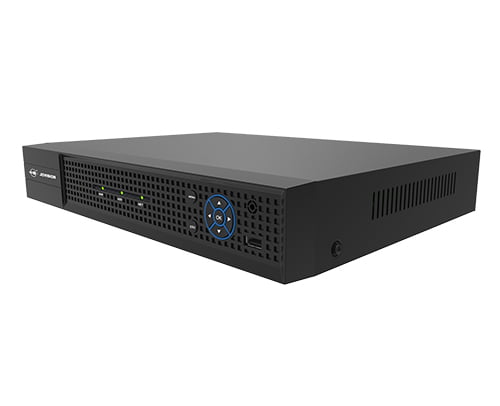

Jovision JVS-XD2804-HB11U bd 4CH Digital Video Recorder
Call for Price
Jovision JVS-XD2804-HB11U bd
Support H.264+(Quasi H.265) encoding, ultra-low bit rates, compatible with H.264 surroundings;
Support VGA, HDMI HD output simultaneously;
Support various mobile monitoring (IOS, android);
Support UTC, control signal& video stream transmit through one single coaxial;
Support AHD/TVI/CVI/CVBS/IP five signals;
Support multi- languages;
Support IVP;
Description
Jovision JVS-XD2804-HB11U bd
JVS-XD2804-HB11U | ||
Video and Audio | Analog Camera Input | 4 Channel, BNC |
HDCVI Camera | 1080P@25/30fps, 720P@25/30fps | |
AHD Camera | 4MP, 1080P@25/30, 720P@25/30fps | |
TVI Camera | 1080P@25/30, 720P@25/30fps | |
CVBS Camera | PAL/NTSC | |
IP Camera Input | up to 1080P | |
Video port configuration: |
Full HD: 4CH | |
hybrid :2CH+2CH | ||
Full network:8CH | ||
Audio In/Out | 4/1, RCA | |
Two-way Talk | 1CH RCA | |
Recording | Compression | H.264+/H.264 |
Resolution | 4M, 1080N, 720P, WD1 | |
Record Rate | Main stream:4M(1~8fps),1080P(1~20fps),1080N/720P/960H/D1(1~20fps) | |
Sub stream: D1/CIF(1~8/12fps) | ||
Record Mode | Manual, Schedule (General, Continuous), MD (Motion Detection, Video Loss, IVP), | |
Audio Compression | G.711U | |
Display | Interface | 1 HDMI ,1 VGA |
Resolution | 1280*1024,1024*768,1280*800,1440*900,1920*1080 | |
OSD | Device ID, Time, Record Setting, Alarm setup, Audio, Camera title | |
Network | Interface | 1 RJ-45 Port (100M) |
Network Function | TCP/IP, DHCP, DNS, DDNS, HTTPS,HTTP | |
Smart Phone | iPhone, Android | |
Interoperability | ONVIF 2.4, CGI | |
Playback and Backup | Playback | 4CH |
Search Mode | Time /Date, MD , IVP, Auto, Scheduled | |
Playback Function | Day view, Hour view, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Snap, Sound on/off, Zoom, Backup to U-Disk | |
Backup Mode | USB | |
Hard Disk Driver | Interface Type: | 1 SATA Interface |
Capacity: | Up to 6 TB capacity for each disk | |
General | Power Supply: | 12 VDC |
Consumption: | ≤ 8 W | |
Working Temperature: | 0℃~ +55℃ | |
Working Humidity: | 10% to 90% | |
Dimensions: | 345*275*75mm,(13.6*10.8*3.0 inch) | |
Weight: | ≤ 1.4 kg (3.1 lb) |
