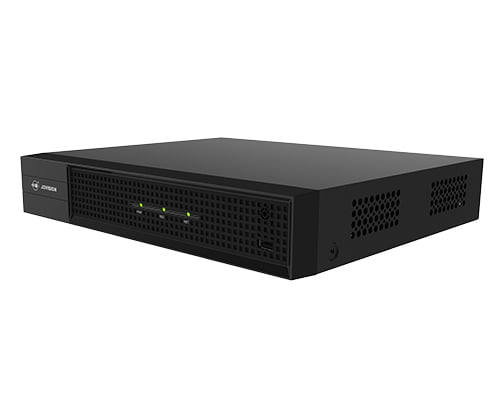

Jovision JVS-XD2816-HD20V 16CH Digital Video Recorder

Call for Price

Jovision JVS-XD2816-HD20V

Support H.264+(Quasi H.265) encoding, ultra-low bit rates, compatible with H.264 surroundings;

Support VGA, HDMI HD output simultaneously;

Support various mobile monitoring (IOS, android);

Support UTC, control signal& video stream transmit through one single coaxial;

Support AHD/TVI/CVI/CVBS/IP five signals;

Support multi – languages;

Support IVP;


Jovision JVS-XD2816-HD20V

Video and Audio Analog Camera Input 16Channel, BNC
HDCVI Camera 1080P@25/30fps,   720P@25/30fps
AHD Camera 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera 1080P@25/30,   720P@25/30fps
IP Camera Input up to 1080P
Video port
Full HD:  16CH
hybrid :8CH+8CH
Full network:16CH
Audio In/Out 2/1, RCA
Two-way Talk 1CH RCA
Recording Compression H.264+/H.264
Resolution 4M-N,  1080N, 720P, WD1
Record Rate Main   stream:4M-N(1~8fps),1080N(1~14fps),720P/960H/D1(1~14fps)
Sub stream: D1/CIF(1~8/12fps)
Record Mode Manual, Schedule   (General, Continuous), MD (Motion Detection, Video Loss, IVP),
Audio Compression  G.711U
Display Interface 1 HDMI ,1 VGA
Resolution 1280*1024,1024*768,1280*800,1440*900,1920*1080
OSD Device ID, Time,   Record Setting, Alarm setup, Audio, Camera title
Network Interface 1 RJ-45 Port (100M)
Network Function TCP/IP, DHCP, DNS,   DDNS, HTTPS,HTTP,
Smart Phone iPhone, Android
Interoperability ONVIF 2.4, CGI
Playback and Backup Playback 16CH
Search Mode Time /Date, Alarm, MD   , IVP, Auto, Scheduled
Playback Function Day view, Hour view,   Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Snap, Sound on/off,   Zoom, Backup to U-Disk
Backup Mode USB
Hard Disk Driver Interface Type: 2 SATA Interface
Capacity: Up to 6 TB capacity   for each disk
General Power Supply: 12 VDC
Consumption: ≤ 10 W
Working Temperature: 0℃~ +55℃
Working Humidity: 10% to 90%
Dimensions: 430×313×87mm   (16.9×12.3×3.4 inch)
Weight: ≤2.0 kg (4.4 lb)
