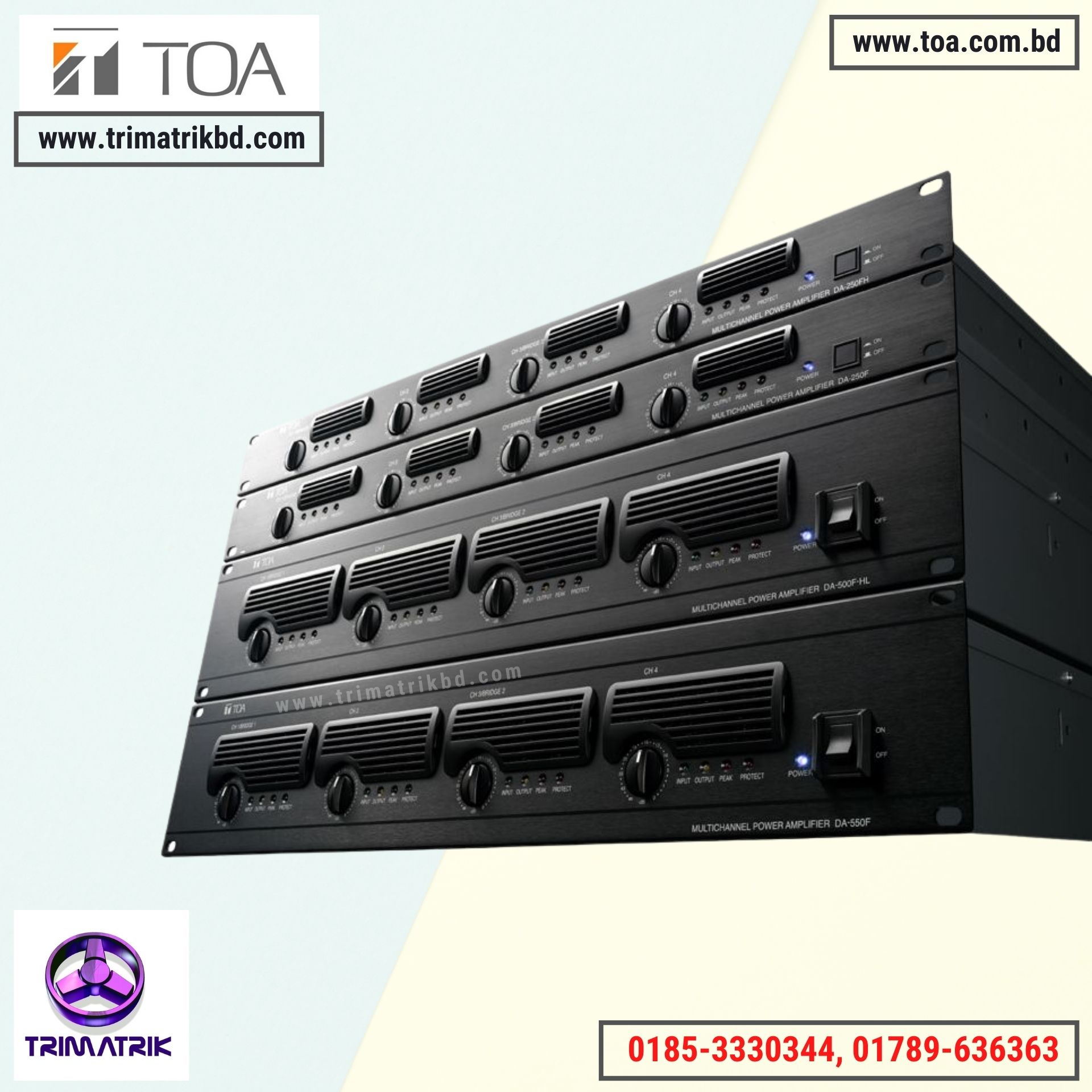

TOA DA-500FH Digital Power Amplifier

Call for Price

  • 4x 500 W rated output
  • 100 V speaker outputs
  • Light weight and compact
  • Class D design 85 % efficient
  • For 19″ cabinet rack mounting with 2 U height
  • Independent power supply for each channel
  • Forced-air cooling system
  • Low heat dissipation
  • Comprehensive protection circuitry
  • Status output (power, protection) and power on/off control per channel
  • Removable dust filters for easy cleaning
SKU: da-500fh Category: Brand:

Description

TOA DA-500FH Digital Power Amplifiers

The DA-500FH is a 4-Channel Digital Power Amplifier designed for 100 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 500 W ƒ 4 channels (20 › output) using a switching power supply. Each channel is equipped with an independent power section. It can be electrically isolated from the high-impedance speaker system by attaching the MT-251H Output Transformer (optional). Its Control/Monitor terminals permit power ON/OFF control of the individual channels and status monitoring for the power ON/OFF on each channel, protection on each channel, and fan operation. Prepare the control panel or status monitor display panel separately. It can be mounted in an EIA Standard equipment rack (2 unit size).

DA-500FH
POWER SOURCE220 – 240 V AC, 50 / 60 Hz
RATED OUTPUT4 x 500 W (100 V, 20 Ω)
FREQUENCY RESPONSE20 Hz – 20 kHz (±1 dB)
DISTORTION< 0.1 % (at 1 kHz)
POWER CONSUMPTION460 W (EN standards)
S/N RATIO100 dB (A-weighted)
NUMBER OF CHANNELS4
INDICATORPower (blue) x 1, Input (green) x 2, Output (yellow) x 2, Peak (red) x 2, Protect (red) x 2
OPERATING HUMIDITY< 90% RH (no condensation)
OPERATING TEMPERATURE-10°C to +40°C
FINISHAluminium, Steel plate, alumite process, black
DIMENSIONS482 x 88.4 x 404.2 mm (W x H x D)
WEIGHT9 kg
ACCESSORY (INCLUDED)Power cord (2 m), Removable terminal plug (3 pins), Rack mounting screw (with plain washer/ 5 x 12), Tamper-proof cap

TOA DA-500FH
