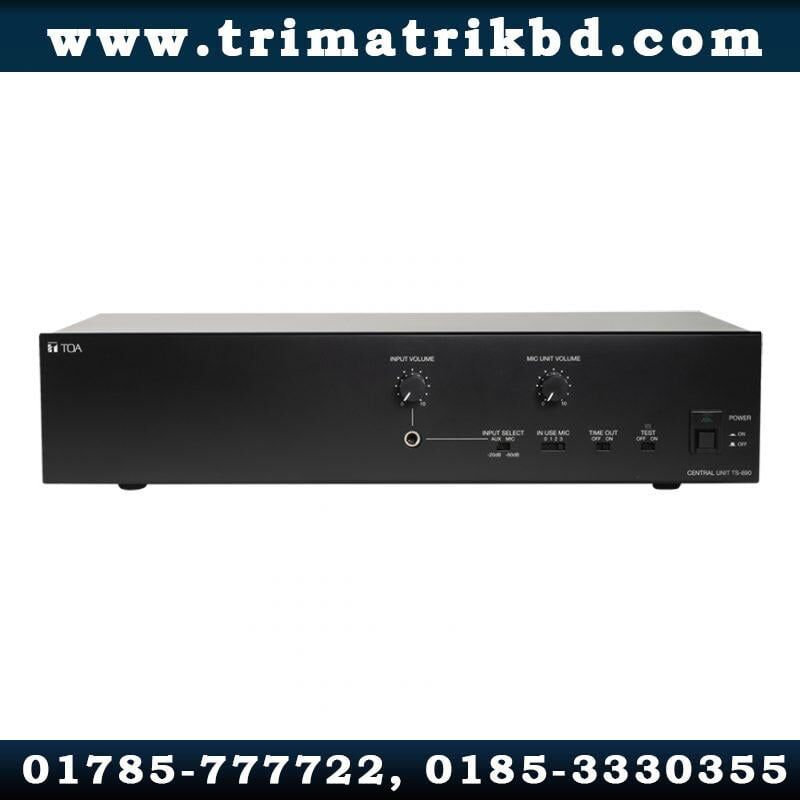

TOA TS-690 Central Unit for Conference System

Call for Price

The TS-690 is a Central Unit for TOA Conference System, TS-690 Series. Use of its line connection terminals permits connections to the conference units of TS-691L & TS-692L, making up a complete conference system to meet your needs. With the use of an optional rack mounting bracket, it can be mounted in a EIA Standard equipment rack, occupying 2 unit size.

Categories: , Tag: Brand:

Description

TOA TS-690 Central Unit for Conference System in Bangladesh

Power Source220 – 240 V AC, 50/60 Hz
Power Consumption20 W
Rated Output36 V DC, 480 mA
InputSelectable MIC or AUX
Mic: -60dB*, 600 Ω, unbalanced, phone jack
AUX: -20 dB*, 10 kΩ, unbalanced, phone jack
OutputRecording: -20dB*, 10 kΩ, unbalanced, RCA jack
Number of Connectable UnitsMax. 24 units
ControlPriority speech chime: Operation of TS-691L priority button activates a single-tone chime
Speaker restriction: Number of simultaneously-usable TS-692L can be set up to 0-3
Automatic Mic-Off Function: OFF, 30s (selectable)
Operating Temperature0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity90 %RH or less (no condensation)
FinishPanel: Aluminum, black. 30% gloss, paint
Case: Steel plate, black, 30% gloss, paint
Dimensions420(W) x 96.1 (H) x 222.5(D) mm (16.54” x 3.78” x 8.76”)
Weight2.7 kg (5.95 lb)
AccessoryPower Cord (2m) x 1
OptionExtension cord: YR-780-2M, YR-780-10M
Rack mounting bracket: MB-23B

TOA TS-690 in Bangladesh

The TS-690 is a Central Unit for TOA Conference System, TS-690 Series. Use of its line connection terminals permits connections to the conference units of TS-691L & TS-692L, making up a complete conference system to meet your needs. With the use of an optional rack mounting bracket, it can be mounted in a EIA Standard equipment rack, occupying 2 unit size.
