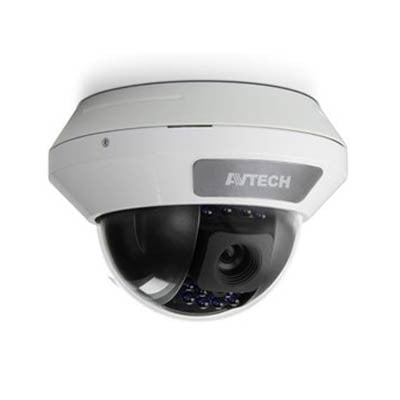

ATV 420
AVTECH AVT 420

AVTECH AVT 420

Call for Price

Sensor: 1/2.8” CMOS
Lens: 3.6 MM
Resolution: 2 Mega Pixel
IR LED: 12 units.
IR Distance: 15 Meter

Description

  • Pick-up Element : 1/2.8″ SONY CMOS image sensor
  • Number of Pixels : 1936(H) 1096(V)
  • Video Frame Rate : 1080P@30fps / 1080P@25fps
  • Min. Illumination : 0.1 Lux / F1.8, 0 Lux (IR LED ON)
  • S/N Ratio : More than 48dB (AGC OFF)
  • Shutter Speed : 1/10,000 – 1/7.5 (Slow shutter)
  • Lens Angle : 87 (Horizontal) / 46 (Vertical) / 104 (Diagonal)
  • WDR : YES (120dB)
  • Operating Temperature : 0? – 40?
  • Video Output : 1.0 Vp-p composite, 75?
  • Power Source (10%) : DC12V / 1A
  • Optional Peripheral : Wall-mount bracket (PAVM542-BKT(B))
Features
  • 1/2.8 CMOS Sensor with 1080P video output
  • External alarm I/O device connection
  • WDR to increase image recognizability in overexposure and dark areas
  • 3-axis mechanism for flexible ceiling and wall-mount installation
  • IR effective distance up to 15 meters for 24-hour surveillance
Lens f3.6mm / F1.8
I/O Ports External alarm
Effective Distance Up to 15 meters
Pixels 2 MP
IR LED 12 units
