AVTECH AVT 450
Call for Price

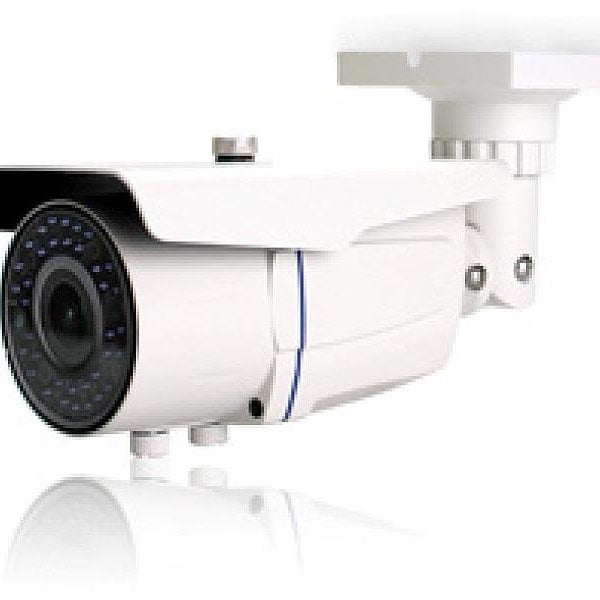

HD CCTV 1080P IR Bullet Camera
FEATURES
(1) 1/2.8” CMOS Sensor with 1080P video output
(2) External alarm I/O device connection
(3) 1080P video output
(4) WDR to increase image recognizability in overexposure and dark areas
(5) Day and night 24-hour surveillance with IR effective distance up to 20 meters
(6) IP66 for weather-proof application
(7) Camera parameters adjustable when used with AVTECH HD CCTV DVR
Description
Pick-up Element 1/2.8″ SONY CMOS image sensor
Number of Pixels 1936(H) × 1096(V)
Video Frame Rate 1080P@30fps / 1080P@25fps
Min. Illumination 0.1 Lux / F1.8, 0 Lux (IR LED ON)
S/N Ratio More than 48dB (AGC OFF)
Shutter Speed 1/10,000 ~ 1/7.5 (Slow shutter)
Lens f3.6mm / F1.8
Lens Angle 87° (Horizontal) / 46° (Vertical) / 104° (Diagonal)
IR LED 30 units
IR Effective Distance Up to 20 meters
IR Shift YES
IRIS Mode AES
White Balance ATW
AGC Auto
WDR YES (120dB)
External alarm I/O YES (1 input / 1 output)
IP Rating IP66
Operating Temperature -25℃ ~ 50℃
Operating Humidity Less than 60% relative humidity
Power Source (±10%) DC12V / 1A
Current consumption (±10%) 320mA (IR OFF); 575mA (IR ON)
Net Weight (kg) 2.4
