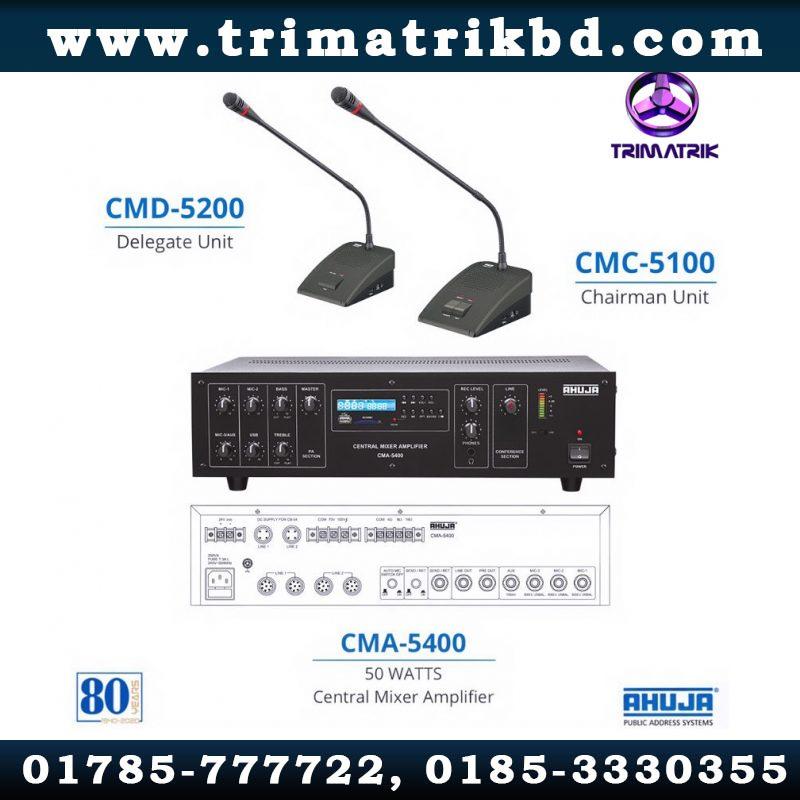

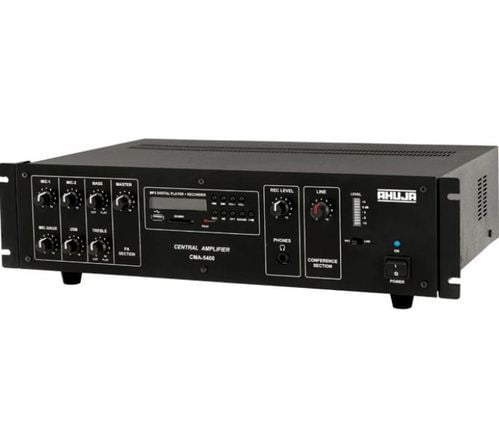

AHUJA CENTRAL AMPLIFIER CMA-5400

৳ 38,500.00

  • Highly sensitive 18.5″ (47cm) long gooseneck microphone for comfortable sharing by two delegates.
  • Bright and uniform band LED indicator.
  • Chairman/Delegate Units have attractive and well contoured plastic top for superior appearance.
  • Rugged and compact die cast aluminium base for better stability of Chairman/Delegate Units.
  • Adjustable headphone output available from each Chairman/Delegate Unit.
  • Automatic Mic Off feature in Delegate units which is selectable through a switch in the Central Amplifier.
  • Chairman Unit has Priority Switch.
SKU: CMA-5400 Categories: , Brand:

Description

AHUJA CENTRAL AMPLIFIER CMA-5400 Price | Conference System

LINE OUTPUT 1 – 17.5V DC/3A MAX.; -34DBV (20MV)
LINE OUTPUT 2 – 17.5V DC/3A MAX.; -34DBV (20MV)
POWER OUTPUT – 50W RMS AT 2% THD, 90W MAX.
INPUTS – 3×MIC 0.65MV/4.7KΩ, 1×AUX 100MV/470KΩ
FREQUENCY RESPONSE – 60-14,000HZ (± 3DB)
S/N RATIO – > 60DB
TONE CONTROLS – BASS: -10DB AT 100HZ, TREBLE: -10DB AT 10KHZ
PREAMP OUTPUT – 200MV/600Ω
LINE OUTPUT – 1V/1KΩ
SEND OUTPUT – 200MV/600Ω
RETURN INPUT – 200MV/10KΩ
SPEAKER OUTPUT – 4Ω, 8Ω, 16Ω, 70V & 100V
POWER REQUIREMENT – AC: 220-240V, 50/60HZ, DC: 24V (2×12V CAR BATTERY)
POWER CONSUMPTION – 250VA
PROTECTIONS – AC FUSE 1×3 AMP , DC FUSE 2×10 AMP.
DIMENSIONS – W483 × H110× D325 MM
WEIGHT – 10.50KG
