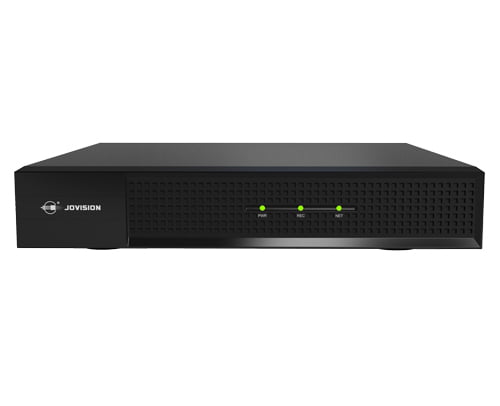

Jovision JVS-XD2816-HE11V bd 16CH Digital Video Record

Call for Price

Jovision JVS-XD2816-HE11V

AHD, TVI, CVI, CVBS, IP video input

Automatic networking support

Cloud services, P2P

H.264+ (Quasi H.265) video compressions

Third-party network cameras supported

Support IVP


Jovision JVS-XD2816-HE11V Price in BD:

Video and Audio Analog Camera Input 16Channel, BNC
HDCVI Camera 1080P@25/30fps,  720P@25/30fps
AHD Camera 4MP, 1080P@25/30,   720P@25/30fps
TVI Camera 1080P@25/30,   720P@25/30fps
IP Camera Input up to 1080P
Video port
Full HD:  16CH
hybrid :8CH+8CH
Full network:16CH
Audio In/Out 2/1, RCA
Two-way Talk 1CH RCA
Recording Compression H.264+/H.264
Resolution 4MP,1080P, 1080N,   720P, WD1
Record Rate Main stream:4M(1~8fps),1080P(1~21fps),1080N/720P/960H/D1(1~21fps)
Sub stream: D1/CIF(1~8/12fps)
Record Mode Manual, Schedule   (General, Continuous), MD (Motion Detection, Video Loss, IVP),
Audio Compression  G.711U
Display Interface 1 HDMI ,1 VGA
Resolution 1280*1024,1024*768,1280*800,1440*900,1920*1080
OSD Device ID, Time,   Record Setting, Alarm setup, Audio, Camera title
Network Interface 1 RJ-45 Port (100M)
Network Function TCP/IP, DHCP, DNS,   DDNS, HTTPS,HTTP
Smart Phone iPhone ,Android
Interoperability ONVIF 2.4, CGI
Playback and Backup Playback 16CH
Search Mode Time /Date, MD , IVP,   Auto, Scheduled
Playback Function Day view, Hour view,   Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Snap, Sound on/off,   Zoom, Backup to U-Disk
Backup Mode USB
Hard Disk Driver Interface Type: 1 SATA Interface
Capacity: Up to 6 TB capacity   for each disk
General Power Supply: 12 VDC
Consumption: ≤ 8 W
Working Temperature: 0℃~ +55℃
Working Humidity: 10% to 90%
Dimensions: 345*275*75mm,(13.6*10.8*3.0 inch)
Weight: ≤1.5kg (3.3 lb.)

Jovision JVS-XD2816-HE11V Price in BD

Jovision JVS-XD2816-HE11V Price in BD:

Price: 9,500
Brand: Jovision
Model: JVS-SD2816-HE11V
Item: NVR
Contact No: 0185-3330344
Status: In Stock
Warranty: One Year
