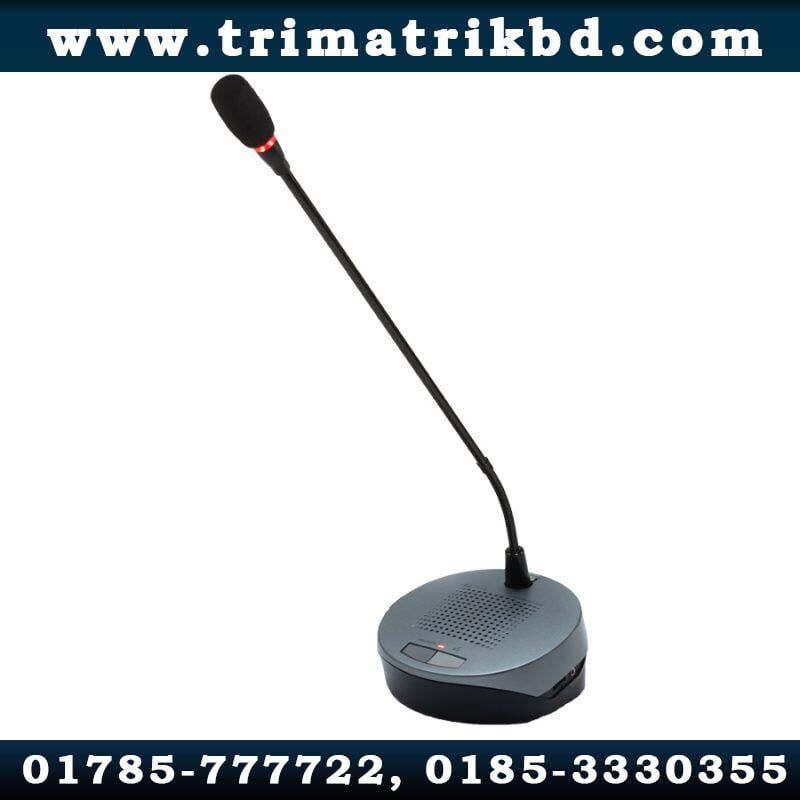

TOA TS-691L Chairman Unit with Long Microphone

Call for Price

The TS-691L is a Chairman unit of the TOA conference system, TS-690 Series of which compact and lightweight design makes it easy to install and store. Placing the speech button in ON position allows a chairman to speak and disable the speaker to prevent feedback. If the speech button is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing voices from delegate units (TS-692L) to be monitored. Pressing the priority key on the chairman unit allows chairman to take precedence over any delegate units. And the TS-691L Chairman Unit comes with a long microphone as a standard accessory.

Description

TOA TS-691L Chairman Unit with Long Microphone in Bangladesh

Power Source36 V DC, 30 mA or less (supplied from the Central Unit TS-690)
OutputHeadphone/Recording: Ø 3.5 mm, mini jack (3P: monaural)
Internal speaker: 130 Ω, 200 mW
ControlSpeech: Microphone, speaker on-off control by speech button
Priority: Microphone, speaker on-off, other microphone cut-off, and
single-tone chime activation by priority button
Volume control: Headphone/Recording and internal speaker volume adjustable
Microphone Unit
(Accessory)
Electret Condenser Microphone
Directivity: Unidirectional
Impedance: 1.8kΩ
Sensitivity:  -37dB (1kHz 0dB = 1V/Pa)
Frequency Response: 100Hz – 13 kHz
Length: 518mm
Weight: 105g (0.23 lb)
Operating Temperature0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity90 %RH or less (no condensation)
FinishUpper case: ABS resin, metallic grey, paint
Lower case: ABS resin, black
Dimensions145.3 (W) × 70.7 (H) × 150.5 (D) mm (5.72″ × 2.78″ × 5.93″)
(Excluding Microphone Unit)
Weight800 g (1.76 lb) (Excluding Microphone Unit)
AccessoryLong Microphone Unit x 1
OptionExtension cord: YR-780-2M, YR-780-10M

TOA TS-691L in Bangladesh

The TS-691L is a Chairman unit of the TOA conference system, TS-690 Series of which compact and lightweight design makes it easy to install and store. Placing the speech button in ON position allows a chairman to speak and disable the speaker to prevent feedback. If the speech button is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing voices from delegate units (TS-692L) to be monitored. Pressing the priority key on the chairman unit allows chairman to take precedence over any delegate units. And the TS-691L Chairman Unit comes with a long microphone as a standard accessory.

TOA TS-690 Central Unit for Conference System
