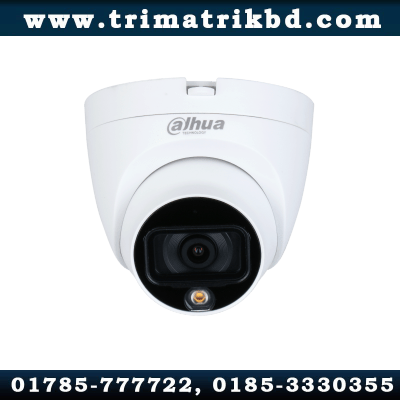

Dahua HAC-HDW1509TLQP-A-LED 5M Full-color Starlight & Audio HDCVI Dome Camera

৳ 3,500.00

HAC-HDW1509TLQ-A-LED

5MP Full-color HDCVI Quick-to-install Eyeball Camera

  • Max 25 fps@5MP (16:9 video output)
  • 120dB true WDR, 3D NR
  • 24/7 color imaging
  • 20 m illumination distance
  • CVI/CVBS/AHD/TVI switchable
  • Built-in mic (-A)
  • 3.6 mm fixed lens (2.8 mm optional)
  • IP67, 12 V DC
  • Quick-to-install eyeball saves installation time
Price: ৳ 3,500
Brand: Dahua
Item: CCTV Camera
Contact No: 01789-636363
Hotline: 01785-777722
Warranty: One Year

Messenger | WhatsApp | Contact us | Clients List

Description

Dahua HAC-HDW1509TLQ(-A)-LED HDCVI Dome Camera

> 120dB true WDR, 3D NR
> 20 m illumination distance
> Max. 30fps@1080P
> CVI/CVBS/AHD/TVI Switchable
> Built-in mic(-A)
> 3.6mm fixed lens
> IP67, 12V±30% DC

HAC-HDW1509TLQP(-A)-LED Specification

Camera
Image Sensor 5MP CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL:1/3 s–1/100,000 s

NTSC:1/4 s–1/100,000 s

S/N Ratio > 65 dB
Min. Illumination 0.001 Lux/F1.0, 0 Lux warm light on
Illumination Distance 20 m (65.61 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 1
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed lens
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.0
Field of View 2.8 mm: H: 112°; V: 57°; D: 132°
3.6 mm: H: 88; V: 46°; D: 104°
Iris Type Fixed iris
Close Focus Distance 2.8 mm: 1.6 m (5.25 ft);
3.6 mm: 2.3 m (7.5 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 67.4 m

(212.3 ft)

27.0 m

(88.6 ft)

13.5 m

(44.3 ft)

6.7 m

(22.0 ft)

3.6 mm 80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.2 ft)

Video
Frame Rate CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
BLC BLC/HLC/WDR/HLC-Pro
WDR 120 dB
White Balance Auto; Area WB
Gain Control Auto; manual
Noise Reduction 3D NR
Smart Light Yes
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
Certifications
Certifications CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1 CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic (-A)
Power
Power Supply 12 V ±30% DC
Power Consumption Max 4.4 W (12 V DC, warm light on)
Environment
Operating Temperature –40 °C to 55 °C (–40 °F to 131 °F); < 95% (non-condensation)
Storage Temperature –40 °C to 55 °C (–40 °F to 131 °F); < 95% (non-condensation)
Protection Grade IP67
Structure
Casing Metal inner core plastic cover plastic pedestal
Camera Dimensions φ97.1 mm × 91.4 mm (φ3.82″ × 3.6″)
Net Weight 0.24 Kg (0.53 lb)
Gross Weight 0.37 Kg (0.82 lb)
Dahua HAC-HDW1509TLQ(-A)-LED Camera,Dahua HAC-HDW1509TLQP-A-LED 5M Full-color Starlight & Audio HDCVI Dome Camera

Dahua HAC-HDW1509TLQP-A-LED 5M Full-color Starlight & Audio HDCVI Dome Camera

Dahua HAC-HDW1509TLQP-A-LED Price in Bangladesh

Price: ৳ 3,500
Brand: Dahua
Item: CCTV Camera
Contact No: 01789-636363
Hotline: 01785-777722
Warranty: One Year

HAC-HDW1509TLQ-A-LED | HAC-HDW1509TLQP-A-LED | HAC-HDW1509TLQ(-A)-LED | HAC-HDW1509TLQP(-A)-LED | HAC-HDW1509TLQP-A-LED-S2

This security camera has a 2 megapixel sensor with a wide, 160 degree viewing angle and it’s enough to monitor your home with its infrared night vision. The HAC-HDW1509TLQP-A-LED is the newest addition to the company’s line of high definition security cameras and offers an excellent balance of cost and performance.

The Dahua HAC-HDW1509TLQP-A-LED is an external camera sensor that can be installed on a wall to monitor your home. The camera has a wide angle lens for monitoring large areas efficiently. This sensor can also pan, tilt, and zoom. Furthermore, the camera is equipped with IR lamps that are effective in low or no light conditions.

With the help of smart technology, this Dahua HAC-HDW1509TLQP-A-LED security camera is perfect for your home. This 1080p HD camera comes with 2 infrared lights that are used to get clear footage in night time situations. The camera also has a wide angle lens that captures more area than other models. You can mount the camera on the wall or ceiling so it is out of sight and monitor your property from an app on your smartphone.

Most Selling Dahua CCTV Camera in Bangladesh:

Fingerprint Attendance Machine Price in Bangladesh

ZKTeco F18 PriceZKTeco F18 Price in Bangladesh | ZKTeco K40 | ZKTeco K40 Price in Bangladesh
ZKTeco uface800ZKTeco uface800 Plus Price in BDHundure RAC-960PEF Price in Bangladesh



Additional information

price

3,500 Taka

brand

Dahua

model

HAC-HDW1509TLQP-A-LED

megapixel

5MP

night-vision

Day-Night Full Color

audio

Yes, Built-in Microphone

warranty

One Year

call

01785-777722
